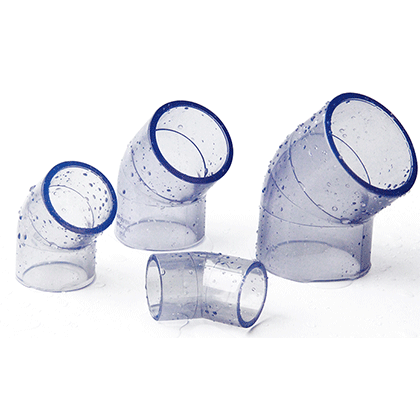

VERYGREEN can offer high-quality Clear Pvc 45° Elbow to meet your different needs.
The difference between clear PVC elbow lies in the different angles of the elbow. According to the actual construction situation, choose different angle elbow products. For example, the direction of the pipeline, if a 45-degree turn is required, a 45-degree elbow is selected.
The use of glue bonding, convenient and fast construction
The bonding area of the clear PVC fitting is also transparent and visible, avoiding blind spots on vision
The bonding pressure of this transparent pipe is enough, which does not affect the normal use and will not lead to the pressure drop of the whole pipeline system
The extension lines of the two nozzles of the VERYGREEN clear 90° PVC elbow are vertical, while the extension lines of the two nozzles of the clear 45° PVC elbow intersect at an acute angle. Look at the takeover: the 90 degree elbow forms a right angle after taking over the clear pvc tee, and the clear 45° PVC elbow forms an obtuse angle after taking over the pipe. If a clear pvc 90 degree elbow is used for the through-wall drainage transparent tube, it will not only cause a lot of noise under the condition of large drop and large water flow but also a great impact on the elbow part if the water flow is large or there are foreign objects. The force may cause these clear pipe fittings to rupture. When a clear 45° PVC elbow is used, a certain slope is formed at the corner, which acts as a buffer. Even if the water flow is large and foreign matter is included, the impact on the pipe wall at the elbow will be greatly reduced.
ASTM

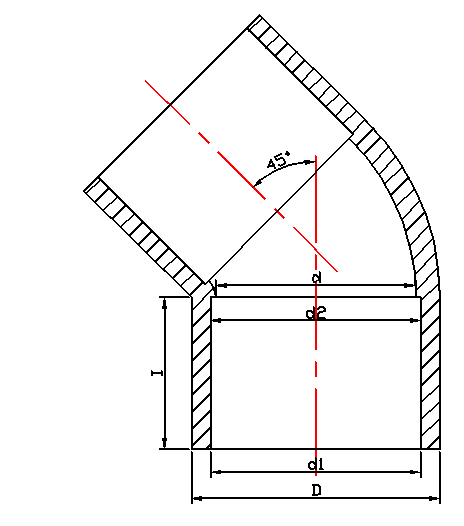

| SIZE | D | d | d1 | d2 | I |
| 1/2" | 29.5 | 16.0 | 21.54 | 21.23 | 24.0 |
| 3/4" | 35.2 | 22.0 | 26.87 | 26.57 | 27.0 |
| 1" | 43.0 | 30.0 | 33.65 | 33.27 | 30.0 |
| 1 1/4" | 53.2 | 38.0 | 42.42 | 42.04 | 34.0 |
| 1 1/2" | 60.0 | 44.0 | 48.56 | 48.11 | 37.0 |
| 2" | 72.0 | 54.0 | 60.63 | 60.17 | 41.0 |
| 2 1/2" | 88.0 | 67.0 | 73.38 | 72.85 | 46.5 |
| 3" | 108.0 | 82.0 | 89.31 | 88.70 | 50.0 |
| 4" | 132.0 | 106.0 | 114.76 | 114.10 | 60.0 |
| 5" | 164.0 | 133.0 | 141.81 | 141.00 | 77.0 |
| 6" | 191.0 | 158.0 | 168.83 | 168.00 | 79.0 |
DIN
| SIZE | D | d | d1 | d2 | I |
| DN15 | 27.0 | 16.00 | 20.30 | 20.10 | 16.0 |
| DN20 | 32.0 | 21.00 | 25.30 | 25.10 | 20.0 |
| DN25 | 40.0 | 28.00 | 32.30 | 32.10 | 24.0 |
| DN32 | 50.0 | 36.00 | 40.30 | 40.10 | 28.0 |
| DN40 | 63.0 | 46.00 | 50.30 | 50.10 | 32.0 |
| DN50 | 75.0 | 57.00 | 63.30 | 63.10 | 38.0 |
| DN65 | 90.0 | 70.00 | 75.30 | 75.10 | 44.0 |
| DN80 | 110.0 | 86.10 | 90.30 | 90.10 | 51.0 |
| DN100 | 127.0 | 106.10 | 110.40 | 110.10 | 61.0 |
| DN125 | 162.0 | 133.00 | 140.50 | 140.20 | 77.0 |
| DN150 | 186.0 | 154.00 | 160.50 | 160.20 | 86.0 |
